Written by Ralph Hill, Mechanical & electrical systems, 3D manufacturing
Prototyping Engineer
Published August 10, 2026
A CAD design company turns a product idea into manufacturing-ready 3D models and drawings — but the good ones design inside the model, not just draw in it.

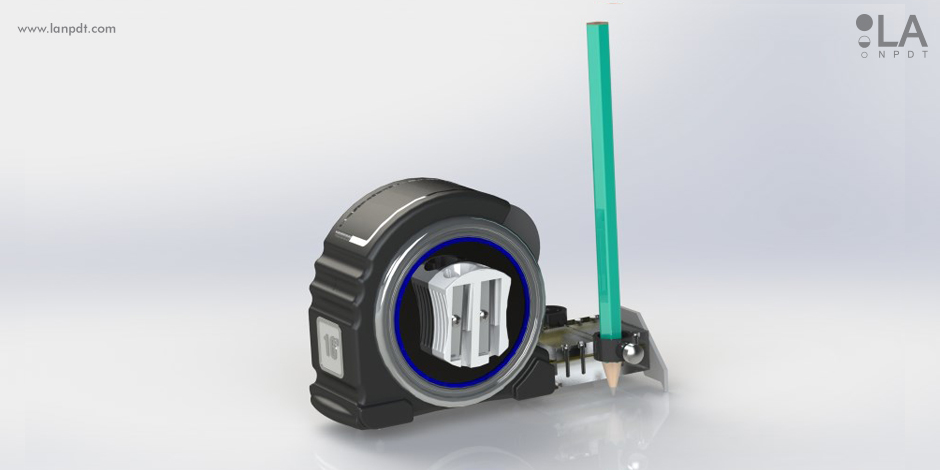

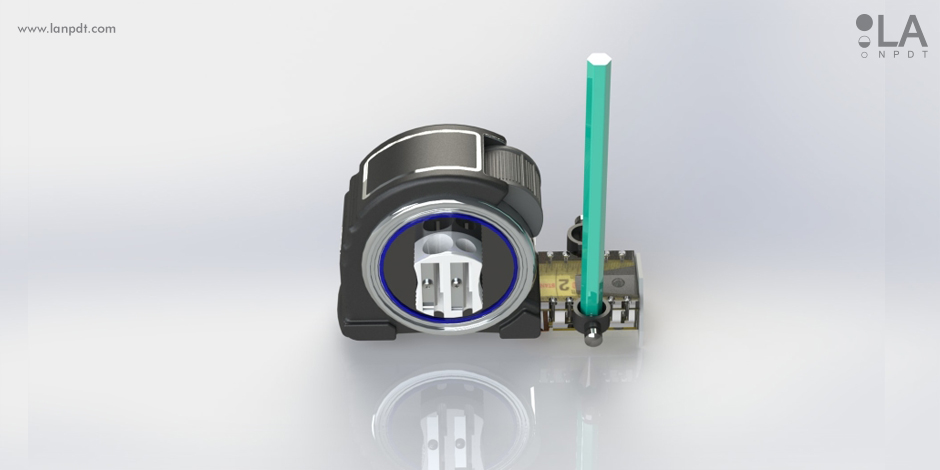

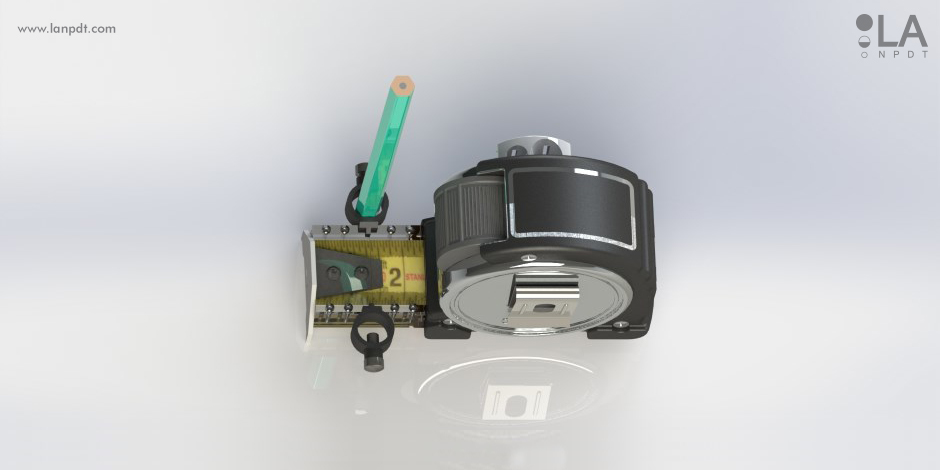

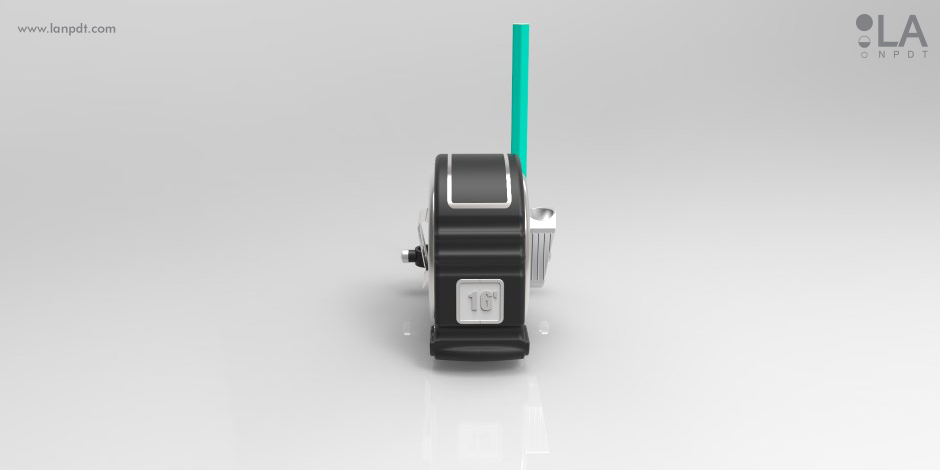

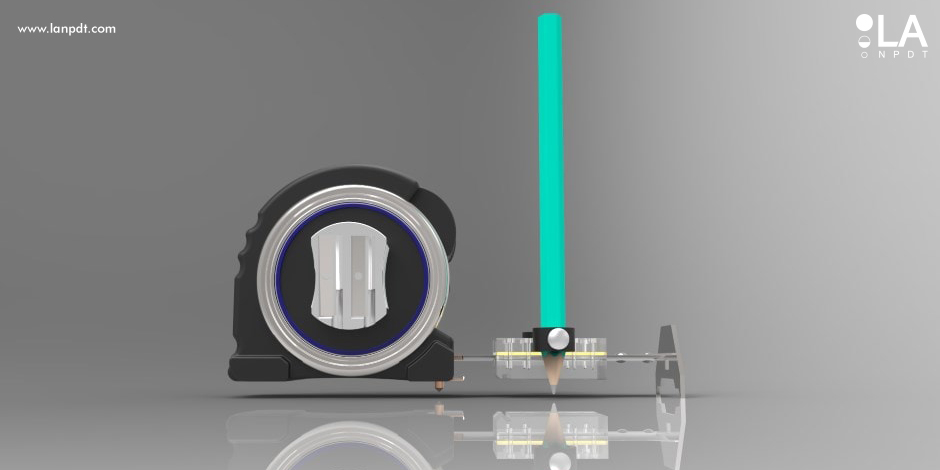

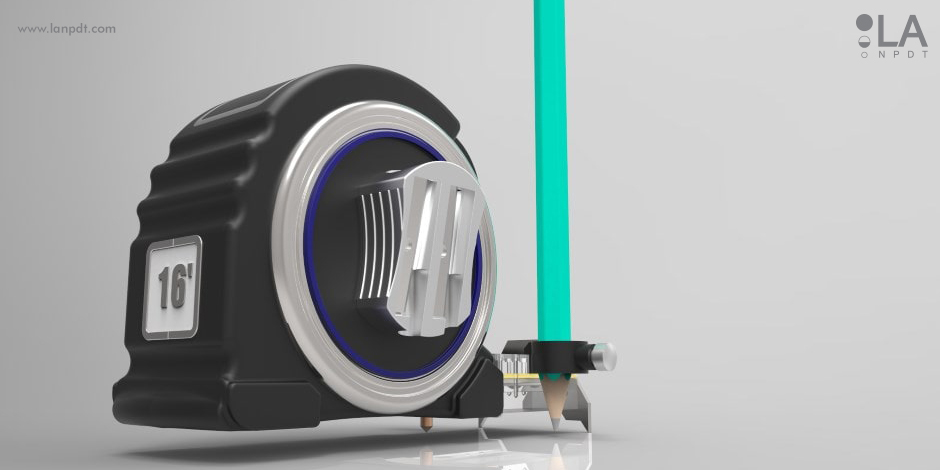

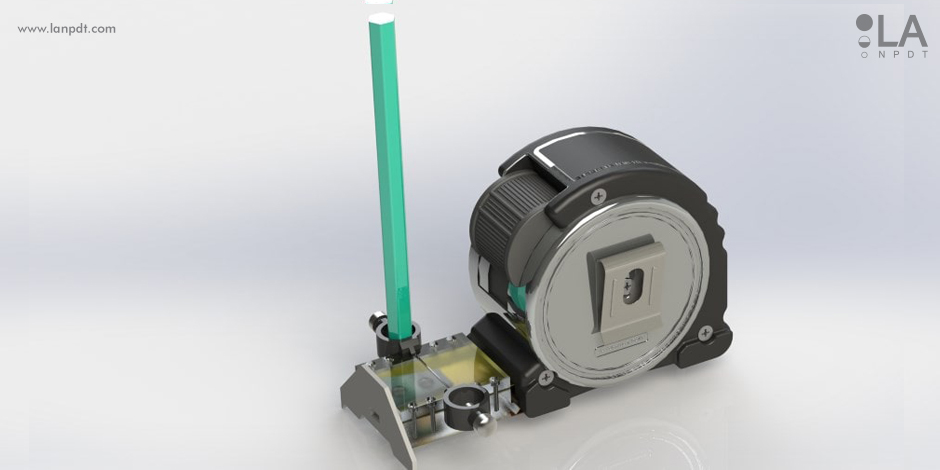

This tape-measure-style measuring device went from a concept sketch to a fully engineered CAD assembly: internal mechanism, housing with split lines and draft, and drawings a molder could quote from.
Project at a glance
- Project
- Tape-measure-style measuring device
- Category
- Hand tools / consumer
- What we delivered
- Mechanism design, housing CAD, tolerance drawings, 3D-printed prototype
The client
The challenge
Our solution
The result
CAD design project at a glance
| Scope | 3D CAD modelling, 2D drawings, tolerance and fit work, prototype files |
|---|---|
| Product | Handheld tape-measure accessory device |
| Software | Parametric CAD with full feature history, native and STEP delivery |
| Deliverables | Editable CAD, dimensioned drawings, BOM, print-ready STL/STEP |
| Typical timeline | 2-4 weeks for a device of this size |
The problem: an idea that no shop could quote
Sketches and a physical mock-up are not manufacturable. Before anyone can print, machine or mould a part, someone has to make the decisions CAD forces: wall thickness, draft, fits, fastener choices, assembly order and tolerances. That is the work a CAD design company is actually hired for.
What we delivered
We built a fully parametric model so dimensions stay editable as the design changes, produced dimensioned drawings a machine shop can quote from, and exported prototype-ready geometry. Because the model carries feature history, later revisions cost hours instead of a rebuild.
Choosing a CAD design company
- Insist on native, editable CAD - not just STEP or STL exports
- Ask whether drawings include tolerances and material callouts
- Confirm the model is built for the intended manufacturing process
- Check that the same team can prototype and iterate what they modelled
Frequently asked questions
How much does CAD design cost?
Single-part CAD typically runs $500-$2,500; a multi-part assembly with drawings usually falls between $3,000 and $12,000.
Do I own the CAD files?
Yes. You receive native editable files and full rights to them.
Can you work from sketches or a physical sample?
Both. We regularly model from hand sketches, photographs or a scanned physical part.
Capabilities used on this project
Rapid prototyping services
3D printing, CNC machining, urethane casting and functional prototype builds with published materials, tolerances and lead times.
Prototype design and engineering
Design for the prototype itself: CAD, tolerance stacks, material choices and assembly detail before anything is built.
Concept design
Sketch exploration, form studies and CAD concepts that turn an idea into a buildable direction.
What a CAD design company actually delivers
Files are the output; decisions are the product. Here is what should be inside a professional CAD deliverable.
1. Model the mechanism before the shell
Hand tools live or die on their internals. We engineered the measuring mechanism first, then designed the housing around it — so the enclosure never compromises how the tool works.
2. Design the housing as molded parts
Every wall gets a thickness, every outside face gets draft, and the split line is chosen so the tool opens cleanly. A CAD model without these is a rendering with an .stl extension.
3. Tolerance the interfaces that matter
Buttons, blade exits and mating halves get called-out tolerances; everything else floats. Over-tolerancing doubles tooling cost for zero functional gain.
4. Prove it physically before tooling
We 3D printed the assembly so the client could feel the grip, run the mechanism and catch ergonomic issues while changes were still free.
| Deliverable | Basic shop | Full engineering team |
|---|---|---|
| 3D models | Visual model only | Parametric assembly with mechanism |
| Drawings | None or screenshots | Dimensioned drawings with tolerances |
| Manufacturing prep | Not included | Draft, split lines, wall thickness verified |
| Prototype tie-in | You arrange it | Printed and tested from the same files |
Questions about this project
Straight answers from the engineers who ran the build. Have a different question? Ask us directly.
Talk to an engineerHow much does CAD design for a product cost?
A single-part consumer product typically runs $2,000 to $8,000 for manufacturing-ready CAD; multi-part assemblies with mechanisms run more. The price driver is engineering content, not modeling time.
What files should I receive from a CAD designer?
Native parametric files (SolidWorks or similar), neutral STEP exports, and dimensioned PDF drawings for anything that will be quoted to a factory.
Can a CAD model be used directly for prototyping?
If it was built with real wall thicknesses and assemblies, yes — the same files drive 3D printing. Visual-only models usually have to be rebuilt first.
