Prototype design: choose the right prototype and get it built
Looks-like, works-like or pre-production? Compare what each prototype proves, what a prototype design package includes, and what it costs.
Prototype design plans what a prototype must prove before you spend money building it: fit, function, user testing or investor demonstration. LA NPDT picks the fidelity that answers your question, designs the parts for that process, and builds them, so each round buys a decision rather than another pretty model.
Prototype design is the work of deciding what a prototype must prove and engineering it so it can be built. It defines the prototype type (looks-like, works-like or pre-production), the parts and materials, the build method and the test plan. A prototype design package usually takes 2 to 5 weeks and costs $3,500 to $25,000 before the build itself.

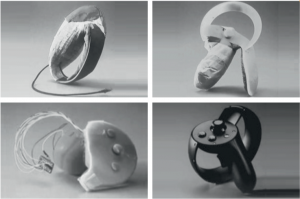

| Prototype type | What it proves | Use it for | Typical cost |
|---|---|---|---|
| Looks-like | Form, size, finish and appeal | Investor demos, packaging, market feedback | $1,500-$6,000 |
| Works-like | Function and mechanism, ignoring appearance | Feasibility, engineering testing | $4,000-$20,000 |
| Looks-like and works-like | Both together in one unit | Pitching, trade shows, user testing | $8,000-$35,000 |
| Pre-production | That the design can actually be manufactured | Tooling sign-off, certification, pilot runs | $15,000-$60,000 |
Not sure which one you need? Answer six questions for a cost range, see how parts get built at our prototype manufacturing shop, or read concept design vs detailed design to place this stage in the program.
What a prototype design package includes
- A stated question. One sentence naming what this build has to prove: that it fits the hand, that the latch survives 5,000 cycles, that the board fits the enclosure.
- Design for the process. Parts drawn for SLA, SLS, CNC, urethane casting or sheet metal, with the wall thicknesses, clearances and fasteners that process actually allows.
- A bill of materials. Off-the-shelf hardware, motors, batteries, seals and fasteners specified with real part numbers, not placeholders.
- Build and finish notes. Assembly order, adhesives, paint or texture, and what gets hand-finished versus left raw.
- The physical unit. Built, assembled, checked against the drawing and photographed.
- A test result. What it did when you used it, and the changes that go into the next round.
How a prototype round runs
| Step | What happens | Typical time |
|---|---|---|
| Scope call | Name the question the prototype must answer and pick the fidelity that answers it | 1-2 days |
| Design or clean-up | Model the parts, or repair CAD you already have, for the chosen process | 3-10 days |
| Build | Print, machine, cast or fabricate, then assemble and finish | 3-10 days |
| Check and test | Fit, function and use, against the original question | 1-3 days |
| Revise | One iteration is normal; the second round is usually faster and cheaper | 1-2 weeks |
Choosing fidelity without overspending
The most common mistake is buying a beautiful prototype when the open question is mechanical, or a rough functional rig when the meeting is with a retail buyer.
Pick fidelity by audience: an investor or licensee needs it to look like the product; an engineer needs it to work; a factory needs it to be made the way production will make it. Splitting a build into a looks-like unit and a separate works-like rig is often cheaper than forcing one part to do both.
If the mechanism is the risk, prove the mechanism first with printed parts and off-the-shelf hardware, then spend on finish.
Prototypes we have built
LA NPDT has operated since 2015 and prototypes in-house in Ruston, Louisiana, so most rounds never leave the building. Recent examples include the QMS2GO digital voice recorder, the UP Trap, Stir n Go, Perky Paws and the Hand Tennis glove, each of which went through printed and cast rounds before tooling. Browse the portfolio to see what came out the other side.
Frequently asked questions
Do I need CAD before you can build a prototype?+
No. A sketch, a photo of a taped-together mock-up or a competitor product is enough to start. We model it, and you keep the files.
How long does a prototype take?+
Simple single-part builds run about one to two weeks from clean CAD. Multi-part assemblies with electronics usually take three to six weeks including one revision.
Show it freely once your IP position is settled. Prototypes are not certified products, so they should not be sold to consumers without the testing and compliance work that production units go through. Talk to us about low-volume manufacturing when you need sellable units.
Sources and standards
Do I own the design files?
- ISO/ASTM 52900 additive manufacturing terminology — Standard definitions for additive manufacturing processes.
- NIST additive manufacturing research — Process and material research underpinning 3D printing quality.
- USPTO — patent basics — Official guidance on provisional and non-provisional filings for new products.
Yes. You own the CAD, drawings and the physical parts, and everything is covered by an NDA from the first conversation.
Which prototype do you actually need?
"Prototype" covers three very different builds with different costs and different jobs. Picking the wrong one is the most common way product budgets are wasted.
| Question | Looks-like model | Works-like prototype | Pre-production unit |
|---|---|---|---|
| Answers | Would someone want this? | Does it actually work? | Can this be made at volume? |
| Made by | SLA printing, paint, decals | SLS, CNC, custom PCB | Cast urethane or bridge tooling |
| Typical cost | $1,500–$5,000 | $4,000–$60,000 | $10,000–$80,000 |
| Typical time | 2–3 weeks | 4–16 weeks | 6–12 weeks |
| Use it for | Investors, photography, packaging, trade shows | Engineering validation, user testing, patents | Pilot customers, certification, tooling sign-off |
What a prototype design package includes
- Production-intent CAD, native and STEP, plus dimensioned drawings.
- Material and process selection with the reasoning written down, not assumed.
- Tolerance and fit analysis for every mating part.
- A test plan: what the prototype must prove, and how you will know it passed.
- A design-for-manufacturing review covering draft, wall thickness, fasteners and assembly order.
Cost and timeline, by product type
| Product type | Prototype design cost | Design + first build |
|---|---|---|
| Simple molded part or accessory | $2,500–$8,000 | 4–6 weeks |
| Multi-part consumer product | $8,000–$25,000 | 8–14 weeks |
| Electromechanical or connected device | $25,000–$70,000 | 14–24 weeks |
| Equipment or machine assembly | $30,000–$120,000 | 16–30 weeks |
Examples of prototype design work
- Apollo 11 multi-tool — industrial design carried through to a working prototype.
- T-Rex tape cutter — mechanism design proven before tooling.
- Qannati luxury watch packaging — a looks-like build where surface quality was the whole point.
Prototype questions before you commit
- 01What is the difference between prototype design and prototyping?
Prototype design is the engineering that decides what gets built — geometry, materials, tolerances and how parts go together. Prototyping is the fabrication that turns those files into a physical object. Design is usually the larger cost.
- 02How much does prototype design cost?
$2,500–$8,000 for a simple molded part, $8,000–$25,000 for a multi-part consumer product, and $25,000–$70,000 once electronics and firmware are involved.
- 03Do I need a prototype before filing a patent?
No. A patent needs a described, enabled invention, not a physical unit. A prototype still helps, because building one usually reveals claims worth adding.
- 04What do I need to bring to start?
A description of what the product must do, any sketches or reference products, target price and target quantity. If you have none of that yet, start with concept design.
- 05How many iterations should I expect?
Two to four. The first build almost always changes fit and ergonomics; the second usually settles function; later rounds tune cost and manufacturability.
- 06Can the prototype design be used for production?
That is the point of designing it production-intent. We draw the parts for the process you will eventually manufacture with, so the step to low-volume manufacturing is a tooling exercise, not a redesign.
The design goes into design for manufacturing, then tooling and production, or into a licensing package if you are pitching rather than building.
What a prototype design package contains
A prototype is only as good as the files behind it. This is the deliverable set a shop, printer or assembler needs to build your unit without guessing.
| Deliverable | What it contains | Why a shop needs it |
|---|---|---|
| 3D CAD | Solid models of every part and the assembly | Drives machining, printing and tooling quotes |
| 2D drawings | Critical dimensions, tolerances, finishes, threads | Tolerances are where prototypes fail; CAD alone omits intent |
| Bill of materials | Part numbers, suppliers, quantities, alternates | Determines lead time and true unit cost |
| Assembly notes | Sequence, fasteners, torque, adhesives | Makes the build repeatable by someone else |
| Electronics package | Schematic, PCB layout, Gerbers, firmware image | Required for board fabrication and assembly |
| Test plan | What the prototype must demonstrate, and how | Turns a demo into evidence |
Compare fabrication routes and turnaround on rapid prototyping, and get a first number from the prototype cost calculator.
Prototype design: common questions
What is prototype design?
Prototype design is the engineering work that turns a concept into a buildable physical unit: choosing what the prototype must prove, designing parts for the process that will make them, specifying materials and tolerances, and producing the files a shop or printer can quote from.
What does a prototype design package include?
A prototype design package normally includes 3D CAD, 2D drawings with critical dimensions and tolerances, a bill of materials with sourcing notes, assembly instructions, and — for electronics — schematics, PCB layout files and a firmware build. Without drawings and a BOM, a shop cannot quote accurately.
How much does prototype design cost?
Design work for a simple mechanical prototype typically runs $2,000 to $8,000; a complex electromechanical prototype runs $15,000 to $60,000 including electronics and firmware. Those figures are design and build engineering, separate from the fabrication cost of the parts themselves.
How long does prototype design take?
Two to four weeks of design for a straightforward mechanical part, plus one to two weeks of fabrication. Electromechanical products usually take six to twelve weeks to first working unit because board fabrication and component lead times dominate the schedule.
Should the prototype look like the final product?
Only if appearance is the question you are testing. Looks-like models sell and validate desirability; works-like rigs prove function and can look like nothing at all. Combining both into one build early is the most common way to overspend.
