Detailed Design Engineering: What It Delivers After Concept Design

Concept design is the early stage of product development where multiple possible solutions are explored, sketched and modeled roughly to decide what the product should be. Detailed design is the later stage where one chosen concept is engineered into complete, manufacturable documentation. Concept design answers what and why; detailed design answers how.

Confusing the two is one of the most expensive mistakes in hardware. Teams that jump into CAD before a concept is chosen end up engineering a direction nobody validated; teams that stay in concept mode too long burn budget on sketches that never get costed.

Concept design turns a problem statement and a set of requirements into several distinct candidate solutions. The output is deliberately rough — the point is to compare directions, not to perfect one. Typical activities include user and market research, function analysis, sketching, mood and CMF exploration, rough form models and quick feasibility checks.

Detailed design takes the single selected concept and engineers it to a state where a factory can build it. Nothing is left to interpretation: every dimension, tolerance, material, finish, fastener and component is specified and documented.

Industry studies of engineering programs consistently find that the early design phase commits the large majority of a product's total lifecycle cost while consuming only a small fraction of the budget. The architecture chosen during concept design — part count, material family, assembly approach, whether a feature needs a side action in the mold — sets the cost floor. Detailed design can protect that floor or erode it, but it can rarely move it.

This is why cutting concept design to save four weeks is usually a false economy. It moves the decision from a stage where changes cost hours to a stage where they cost tooling.

If any of those five is missing, detailed design will discover it — and the discovery will cost far more than finishing concept work would have.

For a broader view of where these two stages sit, see our walkthrough of the new product development process and our product design services.

Concept design ends with a direction. Detailed design ends with a package a factory can quote and build without asking you what you meant. The difference is visible in the deliverables list, and it is worth checking against any proposal you receive — a firm that offers 'CAD' without naming these outputs is quoting concept work at detailed-design prices.

A tolerance stack-up adds the worst-case variation of every part in a dimensional chain to confirm the assembly still functions. It is unglamorous and it prevents the most expensive class of hardware failure: parts that are individually within spec and collectively unassemblable. On a snap-fit enclosure, a stack of five nominal-fine dimensions can easily produce a 0.6 mm gap variation — visible, and enough to make a seal leak.

Detailed design engineering typically consumes half to two-thirds of a program's engineering hours and runs eight to sixteen weeks for a moderately complex product. It is also the phase where scope creep is most damaging, because every added feature multiplies through drawings, analysis, tooling and test. Freeze requirements before it starts, and treat any post-freeze change as a change order with its own schedule impact — that is not bureaucracy, it is the only way the tooling date survives.

Concept design is the early product development stage where several possible solutions to a defined problem are explored through research, sketching, rough models and quick feasibility checks. Its purpose is to choose the right direction before engineering effort is committed.

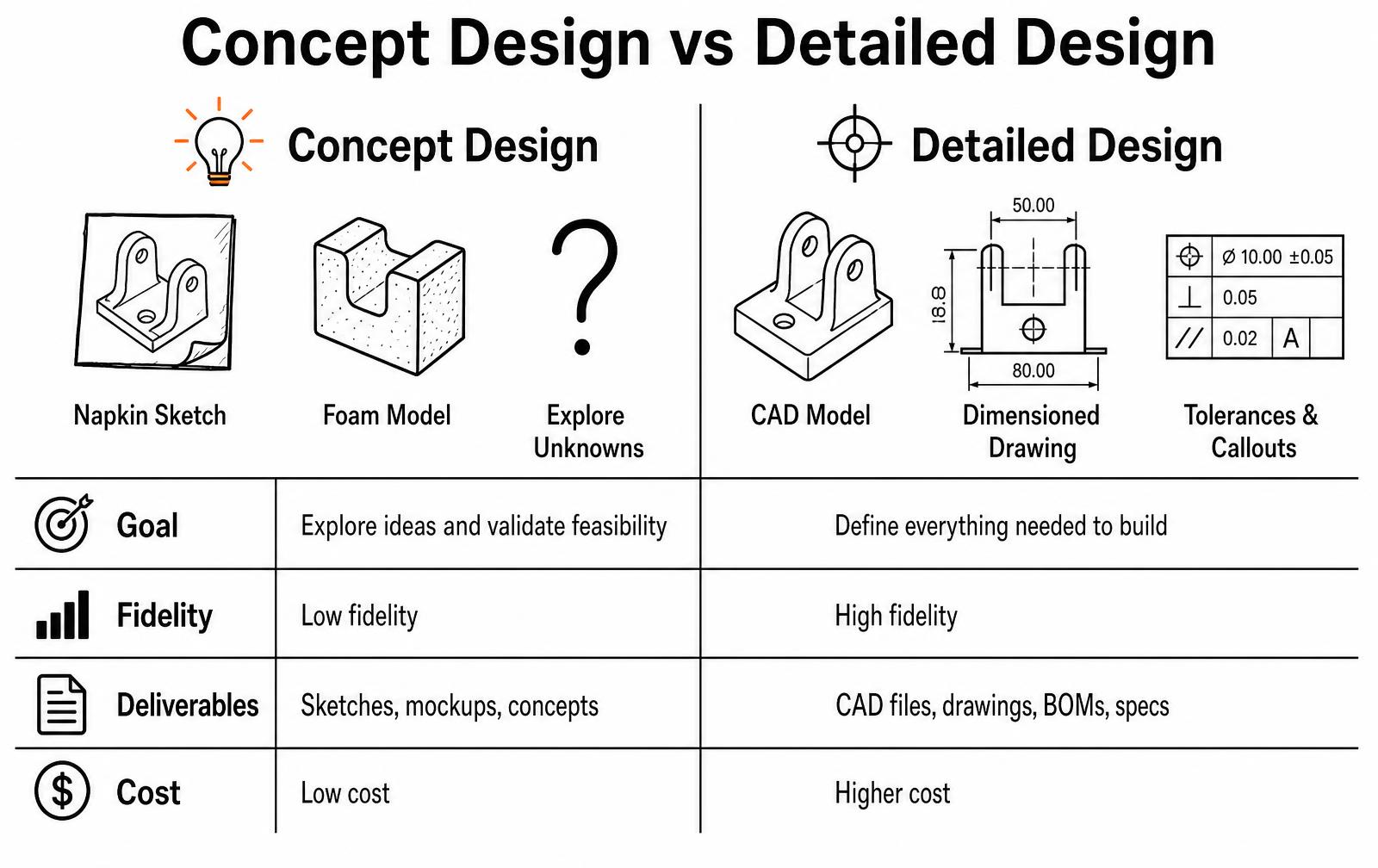

Concept design explores multiple rough directions to decide what to build; detailed design engineers the one chosen direction into complete manufacturable documentation. Concept work is low fidelity and cheap to change; detailed design is high fidelity and expensive to change.

Concept design typically takes three to eight weeks for a consumer or industrial product, depending on how much user research is required and how many distinct directions are explored before selection.

Concept design commonly runs $8,000 to $35,000 depending on research depth, the number of directions explored, and whether physical form models are built. Detailed design usually runs $30,000 to $150,000 or more.

Typical deliverables include user and market research findings, a requirements list, sketches of several directions, CMF exploration, rough form or works-like models, feasibility findings, a preliminary cost estimate, and a documented concept selection.

When one direction is selected and approved, requirements are written and testable, the biggest technical risks have been retired with prototypes, a credible cost estimate clears the business case, and the manufacturing process family has been chosen.

Only when the product is a direct derivative of an existing one with a proven architecture. For anything new, skipping concept design moves decisions into a stage where changing them costs tooling and schedule rather than hours of sketching.

Budget and schedule are the two questions that decide whether a program moves forward. The ranges below reflect what a US-based team typically quotes for a single enclosure-plus-electronics product. Complexity multipliers — regulated markets, sealing requirements, multiple mechanisms, high part count — push each line toward the top of its band.

A stack-up converts nominal geometry into worst-case and statistical assembly outcomes. On a two-shell enclosure with a display window, a light pipe and a press-fit button, the stack typically involves eight to twelve contributors. Worst-case arithmetic on ±0.1 mm mold tolerances alone can consume a 0.6 mm gap before the display bezel is even considered. Running the stack before the tool kickoff is what prevents the classic $18k steel-safe correction after the first shots.

The practical rule: every hour spent closing the concept stage properly removes several hours from the detailed design engineering phase, and every dollar spent on DFM before tool kickoff removes roughly ten from tooling corrections.
