IoT and consumer product development from concept to market
Consumer product development, IoT product development services, and electronic product design and development for startups and companies.

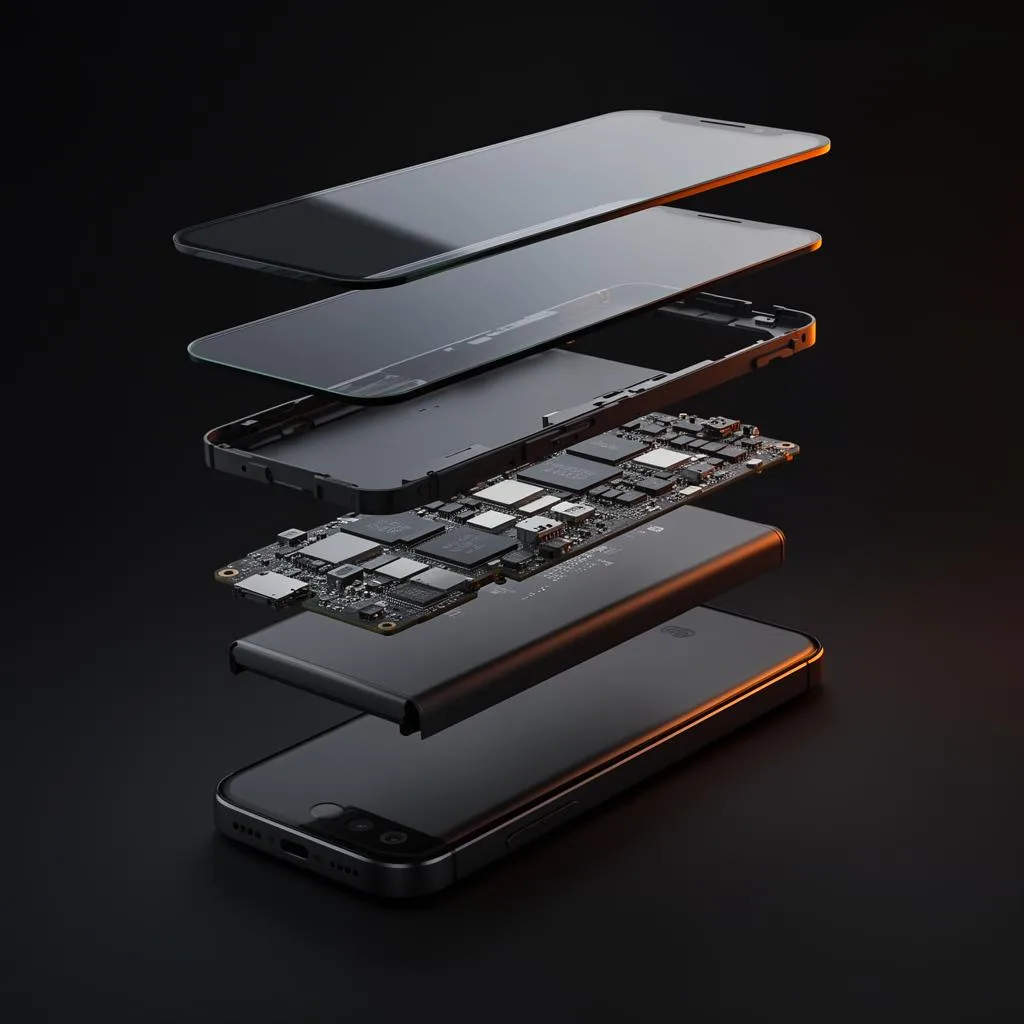

IoT consumer product development means four disciplines shipping at once: electronics, firmware, enclosure and app. LANPDT designs the PCB around the battery budget and the enclosure, writes the firmware and the connectivity path, builds bring-up prototypes, and delivers a factory package with an FCC certification plan already scoped.
Connected products usually need a software layer too — see SaaS and software product development for the app and cloud side, or product development services for the full hardware program.
Recent IoT & consumer work
Projects we designed, prototyped and took to production in this category.
- Designed and manufactured end to end
![]()
![]()
QMS2GO Voice Recorder: Consumer Electronics Product Development, End to End
QMS2GO needed a way for quality managers to capture what happens on a noisy plant floor without carrying a phone into a secured facility. LA NPDT designed, engineered, prototyped and manufactured a wearable digital voice recorder: a 6061 aluminum body, DSP noise cancellation tuned for industrial noise, 16 GB of storage, 12+ hours of runtime, a magnetic clip and lanyard, and a USB connection that plugs straight into a workstation.
View project - 50-unit first batch in 3 months
![]()
![]()
IoT Product Development Services: Sysdyne Delivery Sensor
Sysdyne Technologies needed truck-mounted sensor hardware to match a software launch date. We designed the enclosure, packaged the electronics, iterated prototypes in weeks and built the first 50 units in under three months.
View project - NSF startup — $900K+ raised
![]()
![]()
Converting Air into Aid: The AtmoSpark Journey
ATMOSPARK’s journey with us led to the creation of the Bluelement, a device that transforms humidity into potable water, aiding in diverse environments.
View project
Certified B Corp
Independently verified standards of social and environmental performance.
FDA-registered facility
Registered for device work, with the process discipline that comes with it.
- years developing physical products
- 10+years developing physical products
- projects taken from idea to build
- 1,000+projects taken from idea to build
- design, prototyping and short-run production
- In-housedesign, prototyping and short-run production
Certification and connectivity decisions on a connected device
The two things that kill IoT schedules are certification surprises and a radio chosen after the enclosure was locked. Both are decided here.
| Standard or rule | What it requires | What it changes in the design |
|---|---|---|
| FCC Part 15 (B and C) | Unintentional and intentional radiator testing for any US wireless device. | Add $6,000 to $20,000 and 4–8 weeks; using a pre-certified radio module removes most of Part 15C. |
| IEC 62133 / UN 38.3 | Lithium cell safety and transport testing. | Mandatory to ship cells by air; drives cell sourcing and pack protection circuitry. |
| Bluetooth SIG qualification | Required to use the Bluetooth trademark and stack. | Roughly $8,000 for a member listing, less if the module carries it. |
| Antenna placement | Ground plane, keep-out zone and enclosure material affect range more than transmit power. | Metal or metallized housings need a window or an external antenna — an enclosure decision, not a firmware one. |
| App store + privacy | Apple and Google review, plus data-handling disclosure for any collected user data. | Adds a review cycle and a privacy policy to launch, not just a build. |
IoT development stages, timing and cost
A connected consumer device is four workstreams and one integration risk. These are the bands we quote from.
| Stage | What happens | Duration | Typical cost |
|---|---|---|---|
| Architecture + radio choice | Power budget, radio selection, cloud vs local, BOM target | 2–3 weeks | $5,000 – $15,000 |
| Schematic + PCB layout | Design around the enclosure and the cell, DFM for the assembler | 4–8 weeks | $12,000 – $45,000 |
| Firmware | Bring-up, drivers, BLE/Wi-Fi stack, OTA update path | 6–12 weeks | $18,000 – $70,000 |
| Enclosure + mechanical | Sealed housing, antenna window, button and light-pipe design | 4–8 weeks | $10,000 – $35,000 |
| Mobile app | iOS and Android pairing, control and data views | 8–14 weeks | $25,000 – $90,000 |
| Certification + pilot run | FCC, UN 38.3, 50–500 unit pilot build | 6–10 weeks | $20,000 – $60,000 |
Ranges are what comparable projects have actually cost here, not list prices. Every project is quoted stage by stage, so you approve the next step with real numbers in front of you. See the prototype cost calculator for a first estimate on your own part.
Connected products we built end to end
A digital voice recorder engineered from electronics and firmware through enclosure design and manufacturing for QMS2GO. AtmosPark (an atmospheric water generator), the SmartVue PCB enclosure and a GPS tracking bracelet cover the rest of our connected-hardware range, from board to app.
IoT product development questions
Should I use a pre-certified radio module or a chip-down design?
Use a pre-certified module for anything under roughly 50,000 units a year. It removes most of FCC Part 15C testing, cuts weeks from the schedule and de-risks the RF layout. Chip-down only pays back at high volume where the $3 to $8 module premium matters.
What does it cost to build a connected consumer device?
A BLE device with a simple app typically runs $90,000 to $200,000 through engineering, firmware, app and certification. Wi-Fi plus a cloud backend and OTA updates pushes it to $150,000 to $350,000. Injection tooling is on top, usually $25,000 to $80,000.
Do you write the firmware and the app too?
Yes. Electronics, firmware, enclosure and mobile app are all in-house, which is the point — most IoT projects fail at the seams between four vendors, not inside any one of them.
How long before I have a working prototype?
A bring-up prototype with real electronics in a printed enclosure typically takes 10 to 16 weeks. An earlier looks-like model for pitching can be ready in three to four weeks while the board is still in layout.
